Standard extent of supply

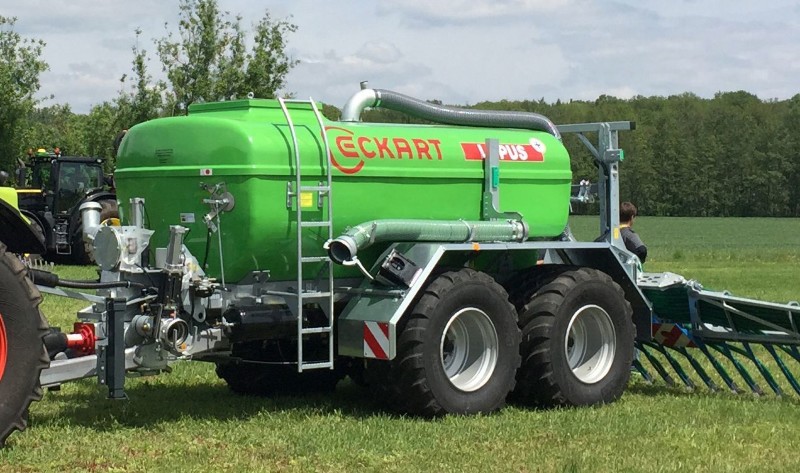

• Tank of polyester laminate
• - Gel coating, green
• - Anti-surge baffle firmly integrated
• - drawbar below pto 2,5t with Y-geometrie, drawbar eye D40mm-2,5t
• - Wheel recess for all wheels
• - Maintenance lid on top of the tanker approx. 600x600mm
• drawbar eye diam. 40mm
• ECKART Tandem pendulum unit TDASL, self-steering axle with thrust washer, single acting, centre distance wheel base 1550mm capacity 18t
• Air-brake dual line 25km/h
• ALB - automatic load controlled brake regulation
• Filling level indicator in front bottom of tank
• Hose brackets on the left and right side (restricted use for attachments)
• 1 jack
• 2 wheel chocks
• Lighting system full LED
• ECKART eccentric rotor pumpe Ex 200/120
• Stone trap, integrated in eccentric rotor pump with draining cover
• Suction connection front left side Bauer HK159 - socket with quick coupler and vent cock
• automatic filling stop system pneumatic 5) for suction valve HK159
• Pressure line diam. 133mm
• Outlet gate valve (three-way valve), hydraulically double acting, socket BAUER HK133
• Hand-operated portioner on three-way gate valve
• Overflow-, aeration- and de-aeration line
• Operating manual and maintenance instructions

Standard accessories:

• Baffle plate spreader with cast nose; Bauer HK133 - ball with lever locking ring
• 6,5m suction line divided with suction guard (4,5m tube + 2m hose) Bauer HK159 ball for quick coupler
• PTO shaft wide angle one side with safety clutch 1 3/8" - 1 3/8" 6nut, for eccentric rotor pump

* Delivery rate according to technical definition at a speed of 540 min-1, water 20 ° C, free inlet, 0 bar pressure,
3) cannot be used for drag shoe distributors, drag shoe option see page 103, drag hose page 95/96;
5) only with standard tanker WITHOUT Signo control, with sign control the option hydraulic filling stop is required!
